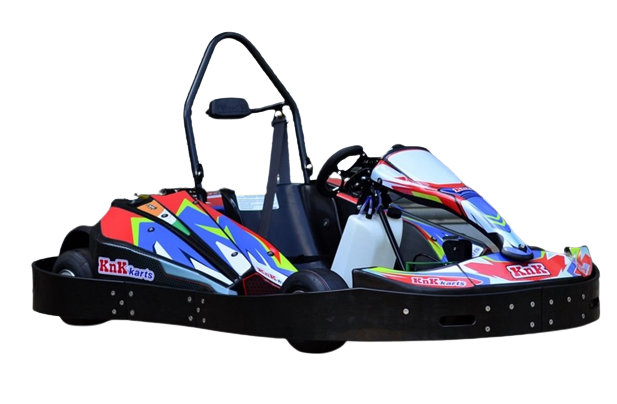

KNK TRAILBLAZER
Trailblazing a new form of adventure karting sport using special purpose karts that can be driven on unsurfaced tracks and trails. Enjoy the thrill of drifting into and powering out of turns. Drive on surfaces comprising loose mud, Pebbles, Grass etc. Meet the KnK Trailblazer.
| Variants |
|---|
|
|
Technical Specifications
| Wheelbase | 120 cm |
| Ground Clearance | 100 mm |
| Frame - Steel Alloy – dia. | 32 mm |
| Finish - Powder Coated | Red |
| Body Kit | Red optional Black |
| Body Decals | Yes |
| Floor Pan | Plastic |
| Seat - Glass Fibre | L / XL |
| Knuckle | Race Type |
| Spindle Diameter | 17 mm |
| King Pin | 10 mm |
| Adjustable Camber & Caster | Yes |
| Wheels - Fr./ Rr. 6 X 4.5 | Pressed Steel |
| Tyres | Knobby (15 X 6-6) |
| Rear Axle | 30 mm Solid |
| Steering Wheel | Rubber - Heavy Duty |
| Pedals | Adjustable |
| Brake Mechanical - Two cable | Yes |
| Engine | Honda GX200 |
| Clutch | Wet type with 2:1 reduction |
| Chain | 428 |
| Axle Sprocket | Steel - 55T |
| Bearing Housing | Aluminium - Split Type |
| Petrol Tank | Engine Mounted |
| Accelerator Actuation | KnK Design Carburettor Pulley |
| Safety | Roll Hoop, Sear belt & Restrainer |
